Replacement Parts

Solar Pathfinder Dome

Replacement Parts

Genuine Parts to Keep Your Solar Pathfinder Performing Reliably

Maintain the functionality of your Solar Pathfinder™ by using genuine replacement parts. Here you can find components like cases, compasses and leveling tools. Replacing worn or damaged parts will help ensure your Pathfinder operates correctly. Browse our selection to keep your equipment in good working order.

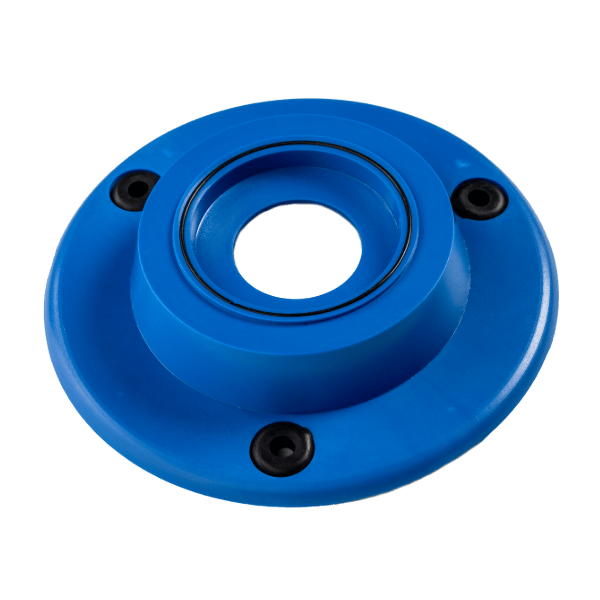

Base Section

This section is the bottom third of the unit. It includes the assembly, rubber ring for securing middle section, and grommets for securing leg assembly.

$40.00

Buy now More Info

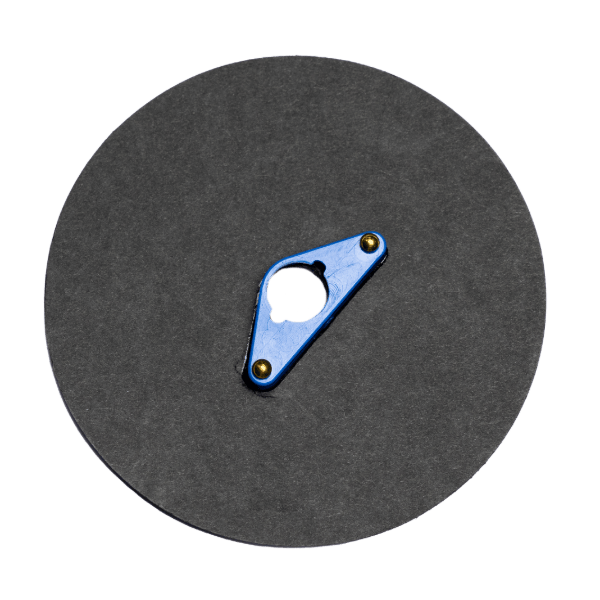

Black Disc - Diagram Support

Black Disc with Plastic Triangle that supports the diagram — part of the Instrument Section.

$8.00

Buy now More Info

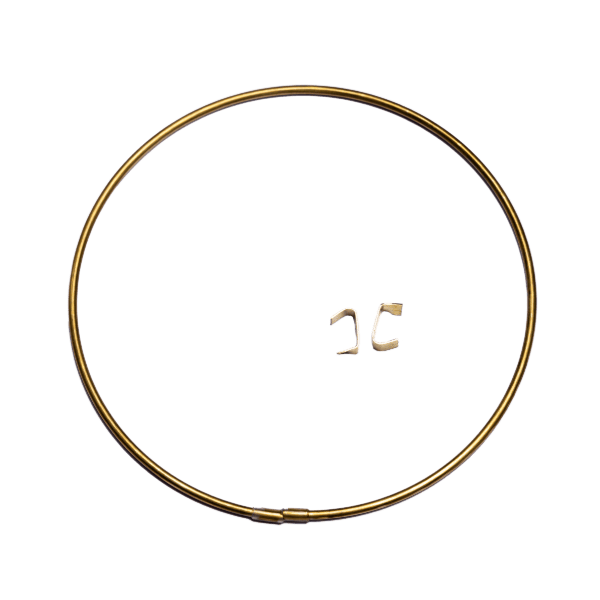

Brass Ring with Two Metal Clips

The rings and clips fasten the lens onto the dome assembly.

$18.00

Buy now More Info

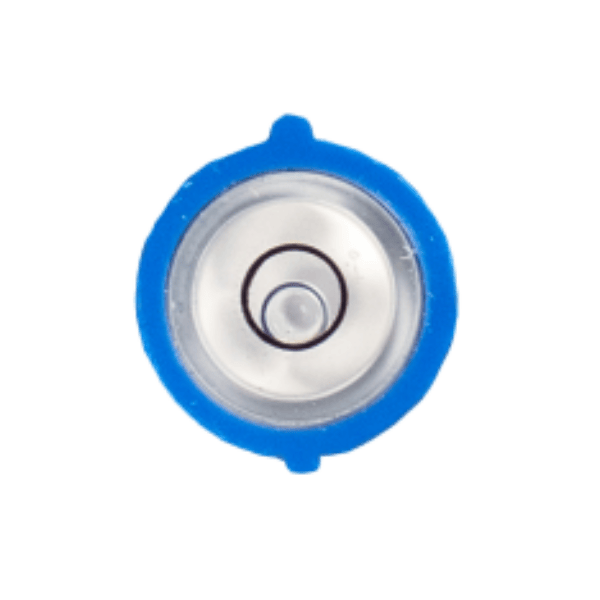

Bubble Level

The bubble level is a replacement part for the instrument section. Comes with complete step-by-step installation instructions.

$12.00

Buy now More Info

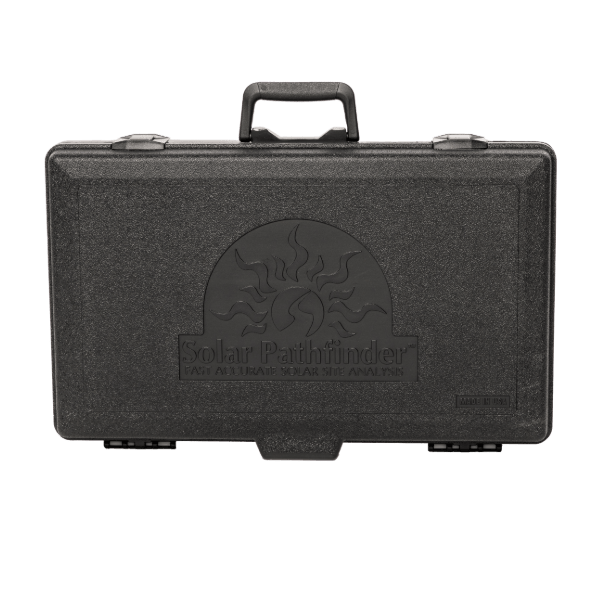

Case

This sturdy tool box is rugged enough for the job site and truck. Being specifically designed for the Solar Pathfinder™, it secures the Pathfinder™ unit by locking it down and protecting the dome from damage. The tripod, manual, diagrams, pens, and other supplies also have secure storage.

$65.00

Buy now More Info

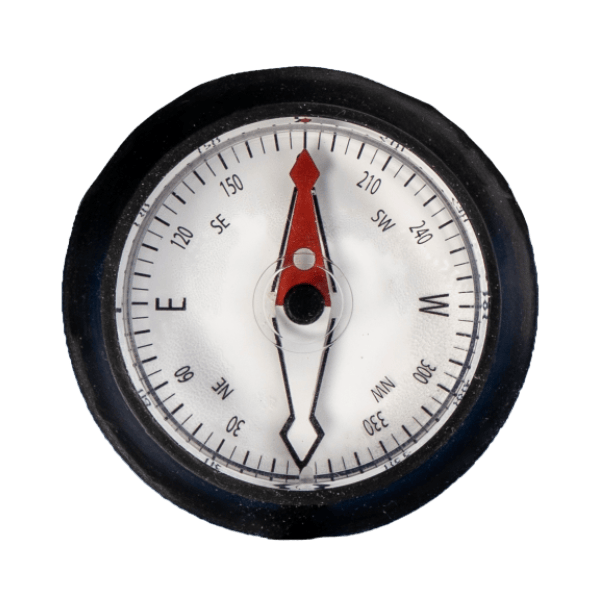

Compass

Brunton compass with trim. Mounting instruction included.

$12.00

Buy now More Info

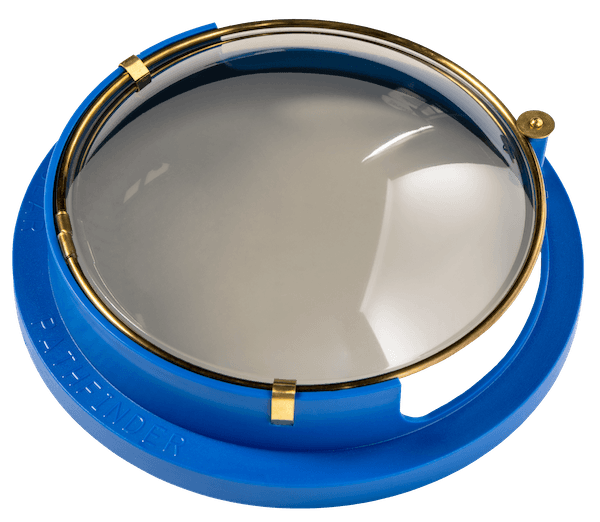

Dome Section

This section is the top third of the unit. It includes the top assembly, dome, brass ring, and brass clips to fasten dome securely.

$135.00

Buy now More Info

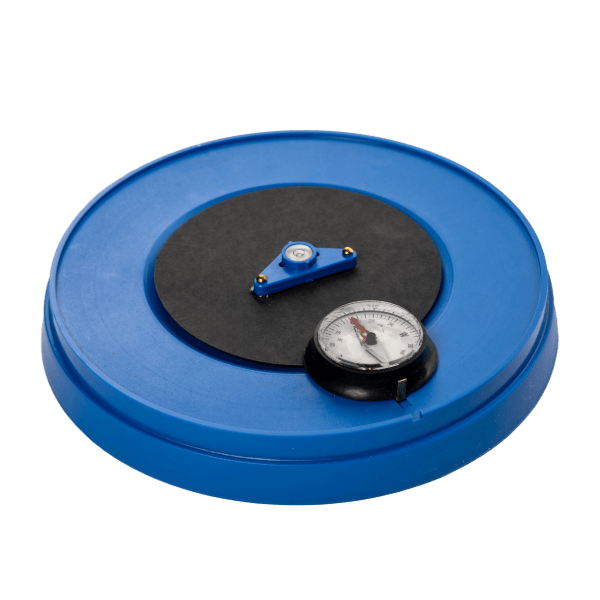

Instrument Section

This is the middle third of the unit. It includes the assembly, level, compass, diagram disc, and magnetic declination adjustment.

$110.00

Buy now More Info

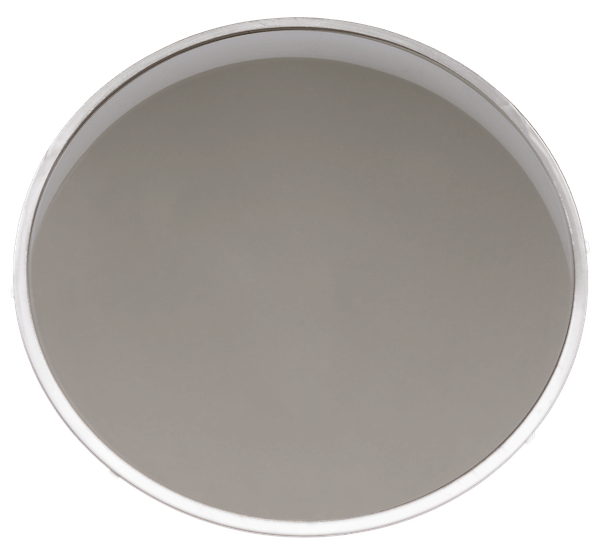

Lens (Smoke)

The lens reflects a panoramic view of the site.

$50.00

Buy now More Info

Sunpath Diagram

The sunpath diagrams are latitude and application specific and can be mixed and matched to meet your needs.

$1.00

Buy now More Info

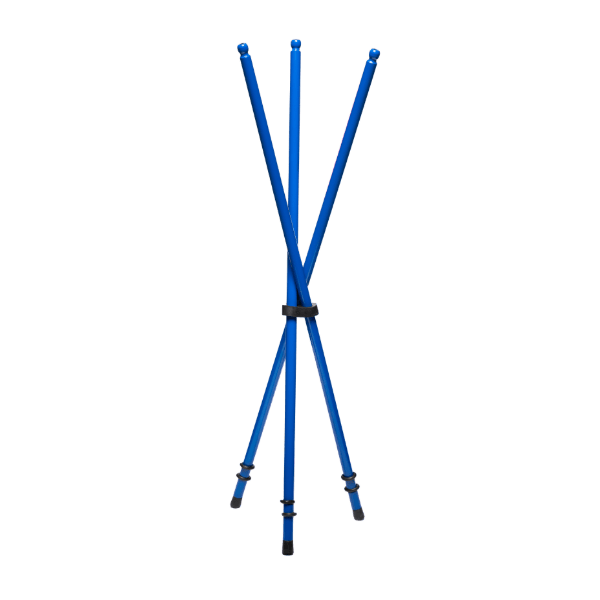

Telescoping Aluminum Tripod

The aluminum tripod, being non-ferrous, will not interfere with the compass function. The tripod's telescoping legs extend to approximately 30 inches and can compensate for rugged terrain or sloped roof.

$65.00

Buy now More Info

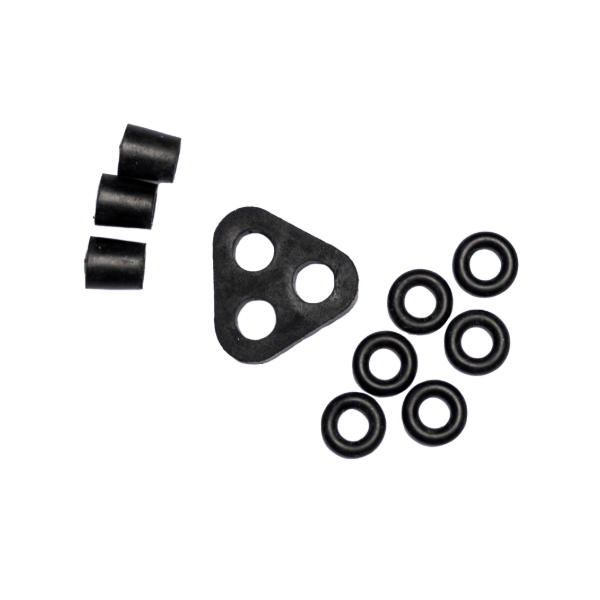

Tripod Tune-Up Kit

If the inner legs of the tripod are slipping in too easily, you might try to rotate the o-rings so that another part of the o-ring is touching the inner leg. If that doesn't work, they might need to be replaced.

$12.00

Buy now More Info

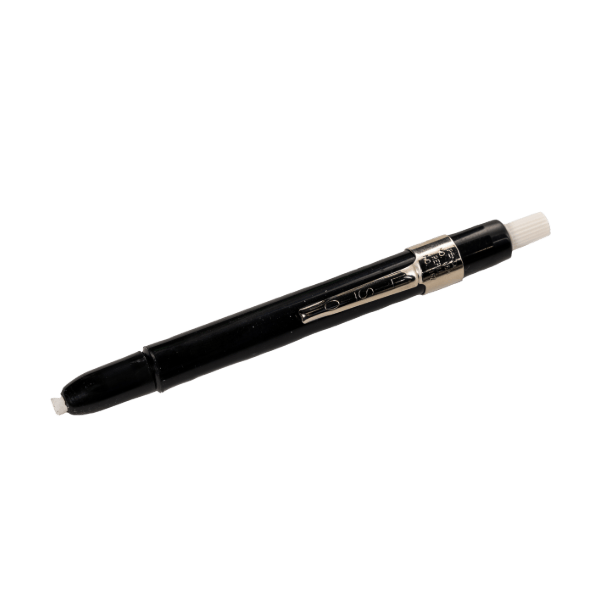

Wax Pencil

For making a permanent record on the Sunpath diagram.

$2.50

Buy now More Info

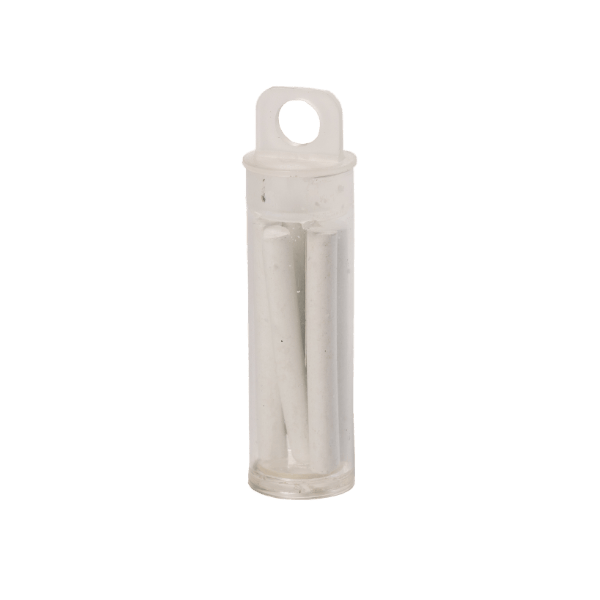

Wax Pencil Refills (White)

Prepackaged white refills for wax pencil.

$2.00

Buy now More Info

How The Solar Pathfinder™ Is Used

Using a reflective dome, the Solar Pathfinder™ captures site shading. When combined with a sunpath diagram, this allows for quick identification of shading obstructions and their impact on solar availability. By placing the unit at the desired location, installers gain a clear understanding of the site's solar potential.
